Description

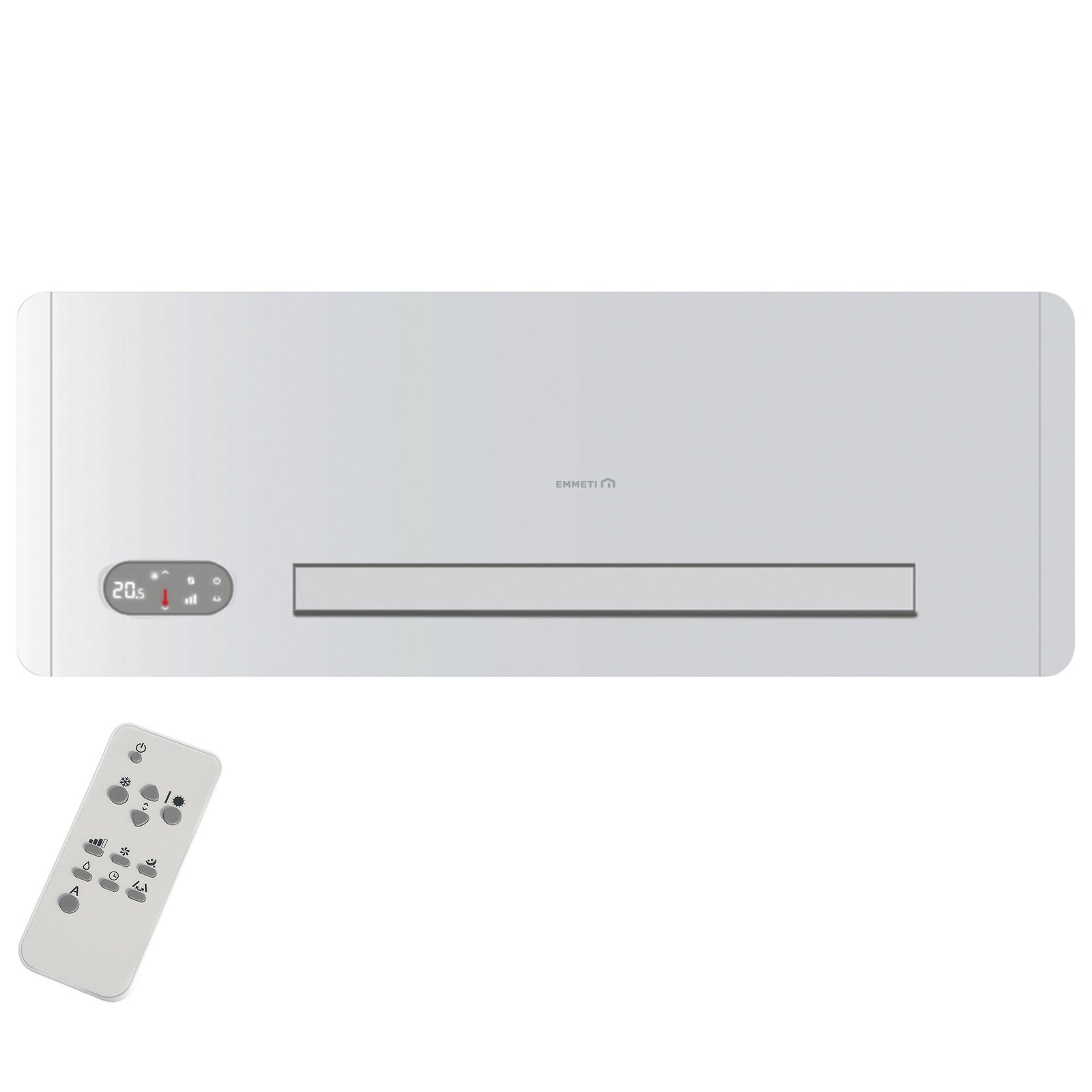

The “THINW-V-AUTO” version with on-board thermostat is able to create and maintain the ideal conditions for well-being all year round, in any residential space thanks to the SMART TOUCH command with touchpad display on the front, and infrared remote control (supplied standard) to control the ambient temperature, fan speed, and operating mode.
The fan coil unit is equipped with the latest DC-INVERTER technology with high-performance permanent magnet fan motor, with speed and power regulation through the PWM electronic device, with noise reduction and power savings of up to 50%.
The unit is complete with air filter, condensate drain filter, and jig for wall fixing.
| Model | Total Cooling Capacity [kW] med (min – m… | Heating Capacity Prated,h [kW] med (min… | Air flow rate [m³/h] med (min – max) | Q.ty per pack. | Code | |
|---|---|---|---|---|---|---|
|
ETWW 240 DQ
|
0,80 (0,48 – 1,07)
|
0,94 (0,53 – 1,27)
|
155 (84 – 228)
|
1 pcs
|
07523525
|
|
|
ETWW 260 DQ
|
1,03 (0,58 – 1,65)
|
1,26 (0,66 – 1,80)
|
229 (124 – 331)
|
1 pcs
|
07523535
|
|
|
ETWW 280 DQ
|
1,75 (0,91 – 2,31)
|
1,98 (0,96 – 2,60)
|
283 (138 – 440)
|
1 pcs
|
07523545
|
|
|
ETWW 240 SQ
|
0,80 (0,48 – 1,07)
|
0,94 (0,53 – 1,27)
|
155 (84 – 228)
|
1 pcs
|
07523625
|
|
|
ETWW 260 SQ
|
1,03 (0,58 – 1,65)
|
1,26 (0,66 – 1,80)
|
229 (124 – 331)
|
1 pcs
|
07523635
|
|
|
ETWW 280 SQ
|
1,75 (0,91 – 2,31)
|
1,98 (0,96 – 2,60)
|
283 (138 – 440)
|
1 pcs
|
07523645
|
Cooling performance under the following standard nominal conditions:
– internal Air temperature = 27 (19) °C
– Water temperature = 7/12 °C
Heating performance under the following standard nominal conditions:
– internal Air temperature = 20 °C
– Water temperature = 45/40 °C
Information requirements for fancoils according to Regulation EU 2016/2281.
Performance according to EN 1397:2016, EN 16583:2015 standards.
Power supply: 230 Vac/1 ph/50 Hz.
Standard water connection on the left side.
