Description

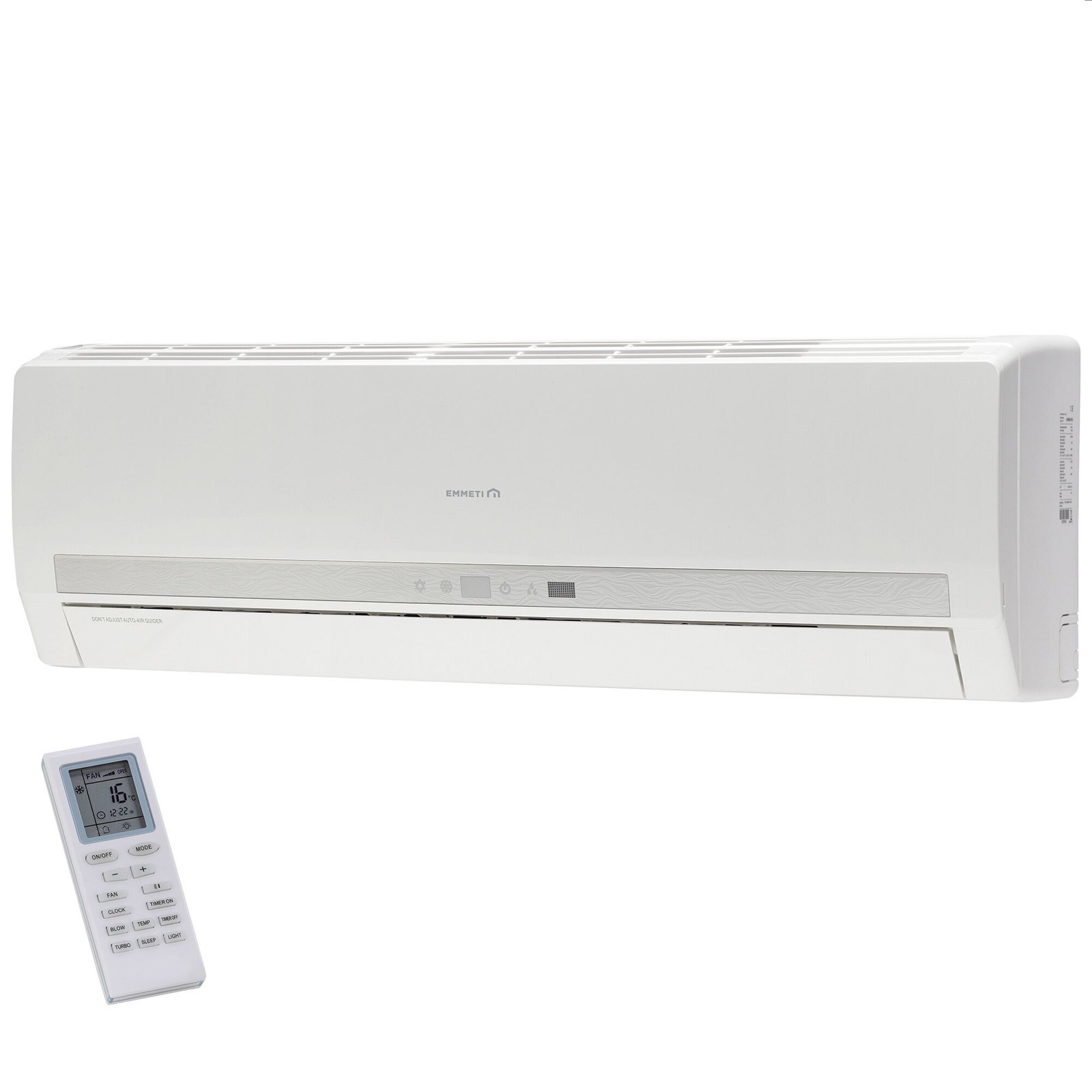

The tangential fan with AC motor, configured to obtain high efficiency and silence in the three speeds available, ensures excellent distribution of the air through a relative motorised flap.
Silence EGWW is equipped with a thermoregulator to indicate, by means of the display positioned on the front panel, the operating status of the electric fan and on/off timer. The above settings can easily be made by the user from the supplied IR remote control, or else the optional wired controller, supplied separately.

Functions
– Ventilation function: three available speeds plus automatic
– Cooling function
– Heating function
– DRY function – Dehumidification
– AUTO – Automatic operation
– TIMER – Hourly regulation
– SLEEP – Night-time operation
– Autorestart – Automatic restart
– Self-diagnosis – Maintenance
– Dust filter
– AIRSWING – Automatic movement of vertical deflector

Moreover, the thermoregulator board has the following:
– dip-switch to activate the air stratification function
– dip-switch to activate the minimum thermostat function
– input to manage the power-on/off of the external unit
– input to manage the window contact
– 230 Vac output to manage the electric valve for the water flow in the unit



Model	Total Cooling Capacity [kW] med (min – m…	Heating Capacity Prated,h [kW] med (min…	Air flow rate [m³/h] med (min – max)	Q.ty per pack.	Code
EGWW-0712	1,90 (1,60 – 2,20)	2,00 (1,70 – 2,30)	340 (280 – 400)	1 pcs	07009570
EGWW-1012	2,00 (1,70 – 2,60)	2,20 (1,90 – 2,80)	360 (300 – 480)	1 pcs	07009575
EGWW-1312	3,10 (2,80 – 3,70)	3,50 (3,20 – 4,10)	600 (550 – 700)	1 pcs	07009580
EGWW-1512	3,70 (3,10 – 4,10)	4,10 (3,50 – 4,50)	700 (600 – 850)	1 pcs	07009585



Cooling performance under the following standard nominal conditions:
– internal Air temperature = 27 (19) °C
– Water temperature = 7/12 °C

Heating performance under the following standard nominal conditions:
– internal Air temperature = 20 °C
– Water temperature = 45/40 °C

Information requirements for fancoils according to Regulation EU 2016/2281.
Performance according to EN 1397:2016, EN 16583:2015 standards.

Power supply: 230 Vac/1 ph/50 Hz.

Standard water connection on the left side.

Note: The water circulating in the exchanger must not exceed 60 °C.
